EFS2-200 Electroforming System

with 2 cells - 200 Amp Power supply

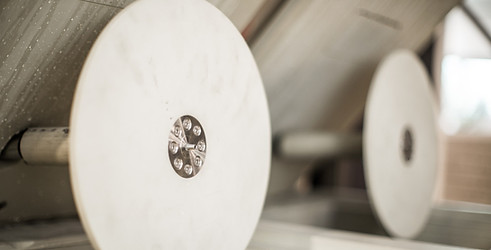

Stands for Electroforming System with 2 cells, specially designed for producing 14” stamper for the production of Vinyl record. After a lacquer has been pre-plated, this pre-plated lacquer and or DMM can be put in the high speed bath to grow the full stamper. This can be done within 70 min. of time. This system is also capable of processing different sizes like 10” and 12” lacquers, adaption set needs to be ordered separately. The maximum current from the current source is guaranteed to be 200 Amp. The lids are manual opened and closed. The rotation speed can be set from 5 – 100 RPM. The flow of every cell can be adjusted by means of a ball-valve. The solution is temperature controlled. The 7” touch screen is used for programming the 4 different programs with a maximum of 8 steps. The programs can be stopped on time or on archiving the requested amount of A/h.

Specifications:

Dimensions : 1400 x 1100 x 2250 mm W x D x H

Working height : 1000 mm

Min. required floor space : 4 m², min. space at the back of EFS2 0,5 m for service purpose

Frame is made of : Stainless Steel

Workbench material : Polypropylene ( PP )

Electrical connection : 380/400 VAC , +/- 5%, 50/60Hz, 3 fase, 16 Amp fused CEE-plug red 16A 5 pole, 3P+N+E

Power consumption : Max. 12,5 kW.

Typical consumption : 7,0 kW at full production

Production cells : 2 piece

Maximum diameter of shell : Ø 356 mm

Max. current on each pos. : 0 – 200 amp.

Rotation speed : 5 – 100 RPM

Tank capacity : +/- 400 l

Cell capacity : 2 x 80 l

Pump capacity : 10m3/h

Filtering : 3 x 20 inch DOE

Specifications Demi-water: Min. filtration size is 1 micron, min.Demi-water quality is ≤ 1 micron Siemens or ≥ 100 kΩ, required pressure min. 2 bar overpressure, max. overpressure 6 bar, max. required flow is 40 l / m

Demi-water connection: Flexible transparent reinforced PVC hose 18/12 mm

Cooling water connection: Flexible transparent reinforced PVC hose 18/12 mm

Cooling capacity: Max. 8 kW, typical 4 – 6 kW

Cooling water specification: Max. flow 40 l / m, temperature range 12 ° C – 35 ° C, pressure range 2 – 8 bar overpressure

Bath working temperature: 54 – 60 ° C
